Thermal Mass and Radiant Floors: How to Turn Your Floor Into a Heat Battery

Most homes heat up quickly and cool down just as fast. The furnace kicks on, the room warms up, the furnace shuts off, and within an hour the temperature is dropping again.

There is a better way to heat a house. One that does not cycle on and off, does not leave cold spots, and does not depend on blowing warm air around a room. It starts with the floor.

Two principles make this possible: thermal mass and radiant floor heating. Together, they turn the floor into a system that absorbs heat, stores it, and releases it steadily, keeping the home comfortable long after the sun has set. In our previous post we covered how passive solar design brings that heat in through south-facing windows.

[EDITOR NOTE: link to Blog 1 - Solar Energy

This post goes deeper on what happens to that energy once it arrives, and how we applied both principles at Cedar Residence, a custom high-performance farmhouse we designed in Monroe, Maine. (Read the full project story: Cedar Shingle Modern Farmhouse in Monroe, Maine)

What Is Thermal Mass in Building Design?

Thermal mass is a material's ability to absorb heat, store it, and release it slowly over time. Dense materials like concrete, brick, and stone do this far better than lightweight materials like wood or drywall. If you want a deeper introduction to how thermal mass works with solar design, we covered it in the previous post.

Best Materials for Thermal Mass in Homes

The most effective thermal mass materials are dense and have high heat capacity. The Constructor summarizes the key construction materials and their relative performance:

Table 1: Thermal Mass Construction Material (Source: The Constructor)

Source: The Constructor, theconstructor.org

For most residential projects, concrete is the practical choice. It is structural, durable, cost-effective, and doubles as a finished floor surface when polished. Its thermal mass performance is excellent, and it pairs naturally with in-slab radiant heating.

What Is Radiant Floor Heating and How Does It Work?

Radiant floor heating generates heat beneath the floor surface and radiates it upward into the room. Rather than warming the air and relying on convection, it warms the surfaces and people in the room directly.

The comfort difference is immediate. Forced air systems push warm air into a room, but warm air rises, leaving the floor, where people actually live, as the coldest surface. Radiant floor heating inverts this entirely. The warmest surface is the one you stand on.

Underfloor heating is one of the oldest ideas in architecture. From Neolithic fire trenches in Asia to Roman hypocausts and Korean ondol systems, civilizations have been warming floors for thousands of years. Frank Lloyd Wright brought the concept into modern residential construction in 1937, embedding hot water pipes in a concrete slab. Today's systems work on the same principle, just with electric cables, hydronic tubing, or air circuits replacing fire and smoke. There are three types used in residential construction today.

Air-Heated Radiant Floors

Air-heated systems circulate warm air through embedded piping in the floor slab rather than liquid. They are less commonly used than hydronic, but a well-engineered air-heated system can deliver effective radiant heat when the floor and heating system are designed together.

The leading example in North America is the Legalett system, which integrates an air-heated radiant floor with a frost-protected shallow foundation. Warm air circulates in a closed loop through HDPE piping embedded in the slab, heated by either an electric unit or a hot-water coil connected to a boiler. Legalett is used in Passive House, LEED, and zero-net-energy buildings across North America.

Advantages:

• No freeze risk: uses air, not liquid, so no antifreeze needed in cold climates
• No leak risk: no water in the slab means no risk of costly water damage
• Simpler installation: easier to balance and commission than a hydronic layout
• Integrated design: foundation, insulation, and heating system engineered as one unit
• Suitable for high-performance builds: certified for Passive House, LEED, and zero-net-energy projects

Disadvantages:

• Less efficient than hydronic: air carries less heat per unit of volume than water, requiring more energy input for the same floor temperature
• Best in tight envelopes: performs well in highly insulated homes but the efficiency gap widens in standard construction

We did not use an air-heated system at Cedar Residence, but it is a legitimate option worth knowing, particularly for builders who want a simpler installation without the risks of water-filled tubing in a slab.

Electric Radiant Floors

Electric radiant systems use heating cables or pre-configured mats installed beneath the floor surface. When electricity flows through the cables, it generates heat that warms the floor above. They are the simplest system to install, making them the go-to choice for renovations, retrofits, and targeted room upgrades.

Advantages:

• Easy to install: cables or mats can be laid under tile, stone, laminate, or engineered wood with minimal disruption
• Fast heat-up time: reaches temperature quickly, ideal for bathrooms and kitchens
• Precise control: programmable thermostats allow temperature scheduling and remote adjustment
• Low maintenance: no moving parts, no boiler, no fluid to manage
• Flexible: can be installed in individual rooms without affecting the rest of the house

Disadvantages:

• Higher operating cost: electricity is more expensive than gas or propane, making it costly for whole-house heating
• Best for small areas: cost-effective in bathrooms, kitchens, or single rooms, but not practical as a whole-house system in cold climates

Hydronic Radiant Floors

Hydronic systems circulate warm water or a water-glycol mix through a network of PEX tubing embedded in the floor slab. Water carries far more heat energy per unit of volume than air, making hydronic the most efficient and most widely used system for whole-house radiant heating, particularly in new construction.

Advantages:

• Most efficient whole-house system: water retains and distributes heat far more effectively than air or electric resistance
• Lower long-term operating cost: especially when paired with a high-efficiency boiler, heat pump, or solar thermal collector
• Zoned control: different areas of the house can be set to different temperatures independently
• Silent and draft-free: no fans, no vents, no noise
• Compatible with multiple heat sources: gas boilers, heat pumps, and solar thermal all work with hydronic systems
• Improved air quality: no air circulation means no dust or allergens blown around the room

Disadvantages:

• Best installed during new construction: PEX tubing must be embedded in the slab before the concrete is poured; retrofitting is significantly more complex and costly
• Higher upfront cost: boiler, manifold, tubing, and zoning controls require greater initial investment than electric systems
• Requires skilled installation: hydronic systems need experienced designers and tradespeople familiar with boilers, pumps, and fluid pressures

Cedar Residence: Thermal Mass and Hydronic Radiant Heating in Practice

Cedar Residence is a custom home we designed in Monroe, Maine for Mike and Susan, a retired couple building their forever home in Climate Zone 6. Comfort and stability through long Maine winters were at the heart of the brief.

The Insulated Slab

The foundation is a slab-on-grade with a frost-protected shallow foundation. A bed of compacted crushed stone sits below three layers of XPS foam insulation, which wraps the underside and perimeter of the slab completely. This separates the concrete from the cold ground below, placing it on the warm side of the building envelope where it can absorb and store heat rather than drain it into the earth.

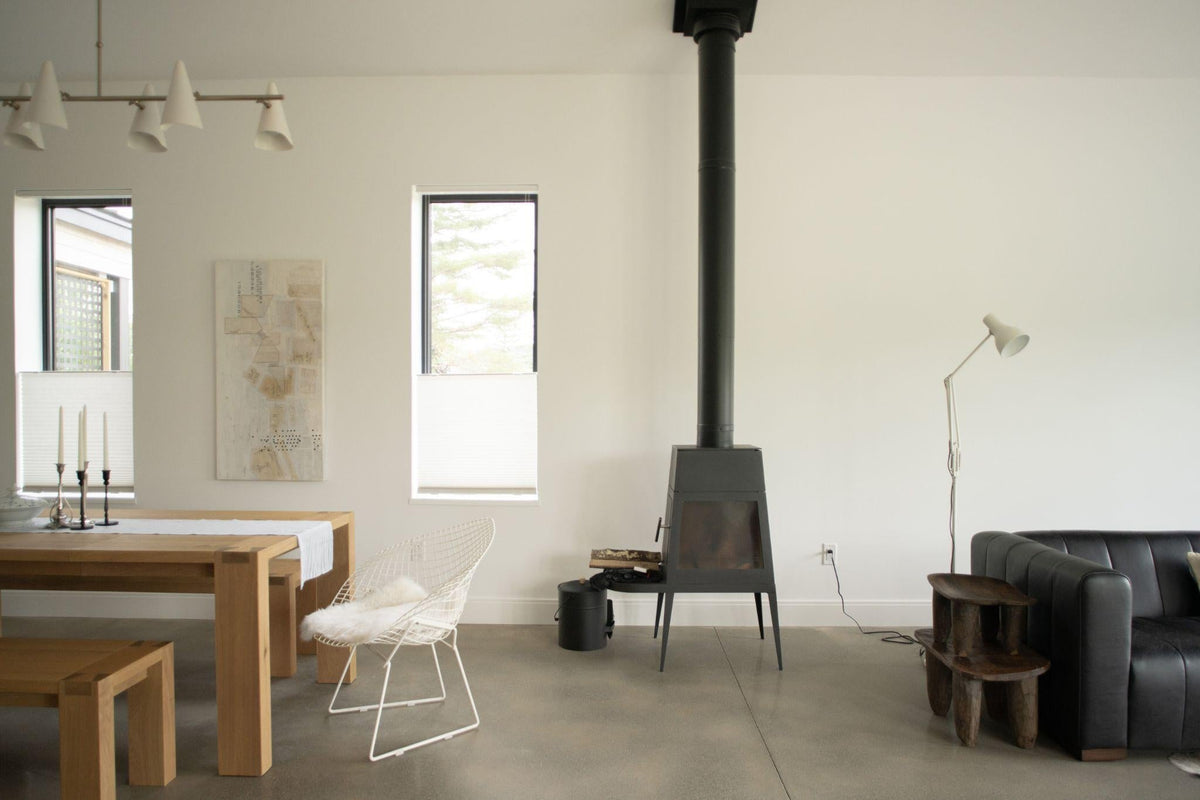

The floor finish is polished concrete. Sunlight entering through the south and east windows falls directly on the slab during the day. The concrete absorbs that solar energy and holds it, releasing it gradually back into the room through the evening.

The Hydronic System: Why Glycol?

For a new concrete slab in Climate Zone 6 with a nine-month heating season, hydronic radiant heat was the clear choice. The tubing was embedded in the slab before the pour, adding minimal cost at the construction stage. The long heating season means the efficiency advantage over electric heat compounds into real savings over time.

The project use glycol-water mix in the system rather than plain water. Glycol acts as antifreeze, protecting the tubing and boiler if the system loses power during a winter storm. In a climate like Maine's, that resilience is not optional. It is a basic design requirement.

The boiler heats the glycol mix and circulates it through PEX tubing across the entire slab. Because the concrete holds a large amount of thermal energy, the boiler runs at a steady, efficient pace rather than cycling on and off aggressively. The slab does the work of maintaining comfort between heating cycles.

What This Means for Your Project

The choices at Cedar Residence reflect a specific brief, but the underlying logic applies broadly. Now that you understand all three systems, here is how to think about which one fits your situation:

• Building new with a concrete slab: Hydronic is almost always the right choice. The tubing is embedded before the pour, adding minimal cost at the construction stage. The long-term efficiency advantage over electric is significant in a cold climate.
• Renovating a single room or bathroom: Electric is the practical option. Easy to install under tile or stone, fast heat-up, low maintenance, and no boiler required.
• Looking for a simpler system without water risk: The Legalett air-heated system is worth exploring, particularly if you want an integrated frost-protected foundation and heated floor without liquid in the slab.
• Cold climate with risk of power outages: Specify a glycol mix in any hydronic system. It protects the tubing and boiler against freezing if the system loses power during a winter storm.
• High-performance or net-zero build: Hydronic paired with a heat pump or solar thermal collector is the most efficient combination. All three system types, including Legalett air-heated, are used in Passive House and zero-energy certified buildings.
• Thermal mass without any radiant system: A well-insulated concrete slab with good solar orientation provides meaningful thermal benefit on its own. Radiant heat enhances it, but the slab does useful work either way.

Summary

The floor is one of the most powerful tools in high-performance home design. When thermal mass and radiant floor heating work together, the floor absorbs heat, stores it, and releases it steadily, keeping the home comfortable long after the sun has set and the heating system has cycled down.

The key points to carry forward:

• Thermal mass works through dense materials like concrete, brick, and stone that absorb and release heat slowly. It only works as intended on the warm side of the insulation layer.
• Hydronic radiant heat is the most efficient whole-house system for new construction in cold climates. Best installed during the build, with a glycol mix in cold climates to prevent freeze damage.
• Electric radiant heat is the practical choice for renovations, retrofits, and single rooms. Fast to install, precise control, no boiler required.
• Air-heated systems like Legalett offer a no-leak, no-freeze alternative to hydronic, with an integrated foundation and floor design suited to Passive House and zero-energy builds.

At Cedar Residence, we chose a hydronic system with a glycol mix embedded in a fully insulated slab. For Mike and Susan, the result is what they asked for: a forever home where the floor is warm from the first step out of bed, and the temperature holds steady through the night. The building science serves the people inside it.
