Black Cedar Garage Apartment with 3-Car
Launch offer: 20% off through September 10 with code LAUNCH20.
A 3-car garage on the ground floor, a full two-bedroom apartment above it. These 3 car garage apartment plans put 853 sqft of garage and workshop under 774 sqft of finished living space — two bedrooms, a full kitchen, a bathroom, and laundry. One foundation, one roof, two completely separate uses. It works as a rental unit, an ADU for family, a vacation place, or the first building you put on a property while the main house comes later.

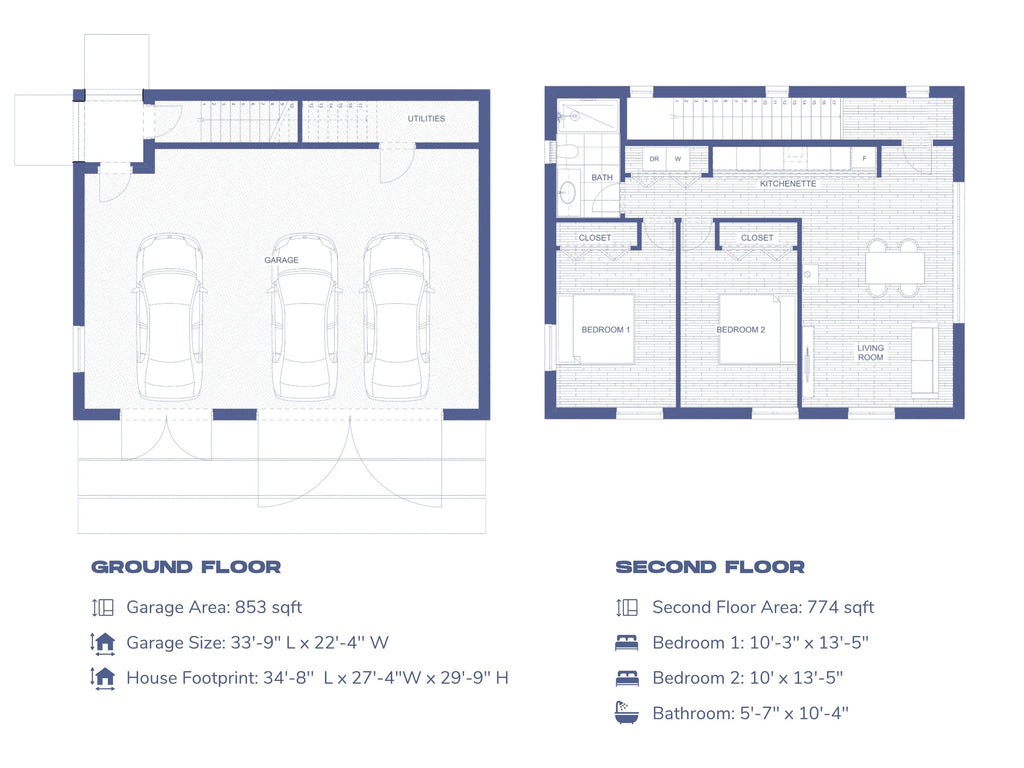

The ground floor garage level totals 853 sqft. The garage bays run 33'-9" wide by 22'-3" deep with 10'-1" ceilings and 24 feet of garage door — a 16' × 8' double bay plus an 8' × 8' single bay. The plan draws two vehicles under the double door and labels the third bay as a workshop, so you can use it either way: park three cars, or park two and keep a dedicated shop with a workbench and full-height storage.
A utility room runs along the back wall for the water heater, panel, and mechanicals. The slab slopes 2% to drain. A 5/8" Type X gypsum fire separation wall and ceiling divide the garage from the apartment above, and there are two exterior doors — one at the garage and one on the opposite side — so the apartment has its own entrance and a second means of egress.
The second floor is 774 sqft — a complete home, not a loft. The living, dining, and kitchen area sits under a 14'-9" cathedral ceiling with a 12-foot window across the gable end. The kitchen is a 13'-11" galley run with a cooktop and built-in oven, hood, dishwasher, undermount sink, full-height refrigerator, and eighteen cabinet units.
Two bedrooms sit at the far end, away from the stairs. Bedroom 1 is 13'-5" × 10'-3" and Bedroom 2 is 13'-5" × 10'; each has a bi-fold closet and its own ductless minisplit. The bathroom has a tiled walk-in shower and a vanity. A stacked washer-dryer is built into the end of the kitchen run. Compared to most garage apartment floor plans, the second bedroom is what makes this liveable long-term rather than just a guest space.
This plan is part of the Wood Series. Walls are R-33: vertical wood siding over a 1½" vented rainscreen, 2½" of continuous exterior insulation, plywood sheathing, and a 5½" stud cavity with cellulose. The roof is R-60 under prefabricated wood trusses at an 8:12 pitch, finished in black standing seam metal with snow guards, ice and water shield, a vented ridge, and gutters.
Heating and cooling come from two ductless minisplits plus a wood stove and chimney. The foundation is a monolithic slab on grade. Interconnected smoke, carbon monoxide, and heat detectors are shown throughout. The roof plan indicates a location for future solar panels.
Homeowners who need garage space anyway and want a rental or family unit out of the same foundation. Buyers comparing 3 car garage plans, garage apartment plans, or ADU house plans who want three bays plus a two-bedroom apartment good enough to live in full-time. It also suits anyone planning a 3 car garage with apartment on top as the first phase of a longer build.
For a smaller version of the same idea, the 1 bedroom garage apartment with a 2-car garage is a 572 sqft unit over two bays and has been built by a customer. For more space, the Dynamic Garage Apartment totals 2,074 sqft. If the unit doesn't need to sit over a garage, see the 512 sqft Micro Steel Cabin ADU, the ADA-accessible Modern Granny Pod, or the Twin Barndominium with ADU.
An 853 sqft three-bay garage level with a utility room on the ground floor, and a 774 sqft two-bedroom apartment above with an open living and dining area, a full galley kitchen, a bathroom with a walk-in shower, laundry, and two bedrooms with closets.
Yes. The garage is 22'-3" deep with 24 feet of garage door — a 16' double bay and an 8' single bay. The plan labels the single bay as a workshop, since that is how many owners use it, but it is a full-size bay and a third vehicle fits.
That is one of the most common uses for this plan. Because it has a full kitchen, bathroom, and laundry, it can be permitted and occupied on its own, giving you a place to live on site and secure storage during construction. Confirm with your local building department that your jurisdiction allows an accessory structure to be occupied before the primary residence is built.
Yes. With its own entrance, two bedrooms, a full kitchen, a bathroom, and laundry, it works as an accessory dwelling unit, a rental unit, a multigenerational suite, or a home office. Check your local ADU ordinance for setbacks, parking, and owner-occupancy rules.
29'-9" to the top of the roof ridge, on a 34'-8" × 27'-3½" footprint. The garage has 10'-1" ceilings, and the apartment ranges from 8'-1" at the walls to 14'-9" at the cathedral ridge.
Yes. Walls are R-33 with continuous exterior insulation over a vented rainscreen, and the roof is R-60. Heating and cooling come from two ductless minisplits plus a wood stove with a chimney.
The plans are designed to comply with the International Residential Code (IRC). Local codes vary, so your building department may require modifications, and the plans are not stamped by a licensed architect or engineer. If your jurisdiction requires a stamp, a local professional will need to review and seal them.
The Study Plans Package is a preliminary set for reviewing the design, sharing with family, and getting early build estimates. The Building Plans Package is the full construction set your builder uses to permit and build.
Generally, our customers receive quotes in line with local average construction costs, ranging between $250 - $600 per sqft, depending on location, finishes, and site conditions. For a more accurate and detailed estimate, we recommend purchasing the study set and sharing it with your preferred builder.
